DEMAG KBK · Freestanding steel
DEMAG KBK 2,200 lb freestanding steel kit
A calculated 2,200 lb DEMAG KBK reference package with a selected chain hoist, push bridge/trolley travel and a documented component schedule.
Request this package ↓
Configuration dimensions & equipment
- Rated capacity
- 2,200 lb
- Span between runways
- 15′-5 1/16″ (OEM technical data)
- Floor to trolley saddle

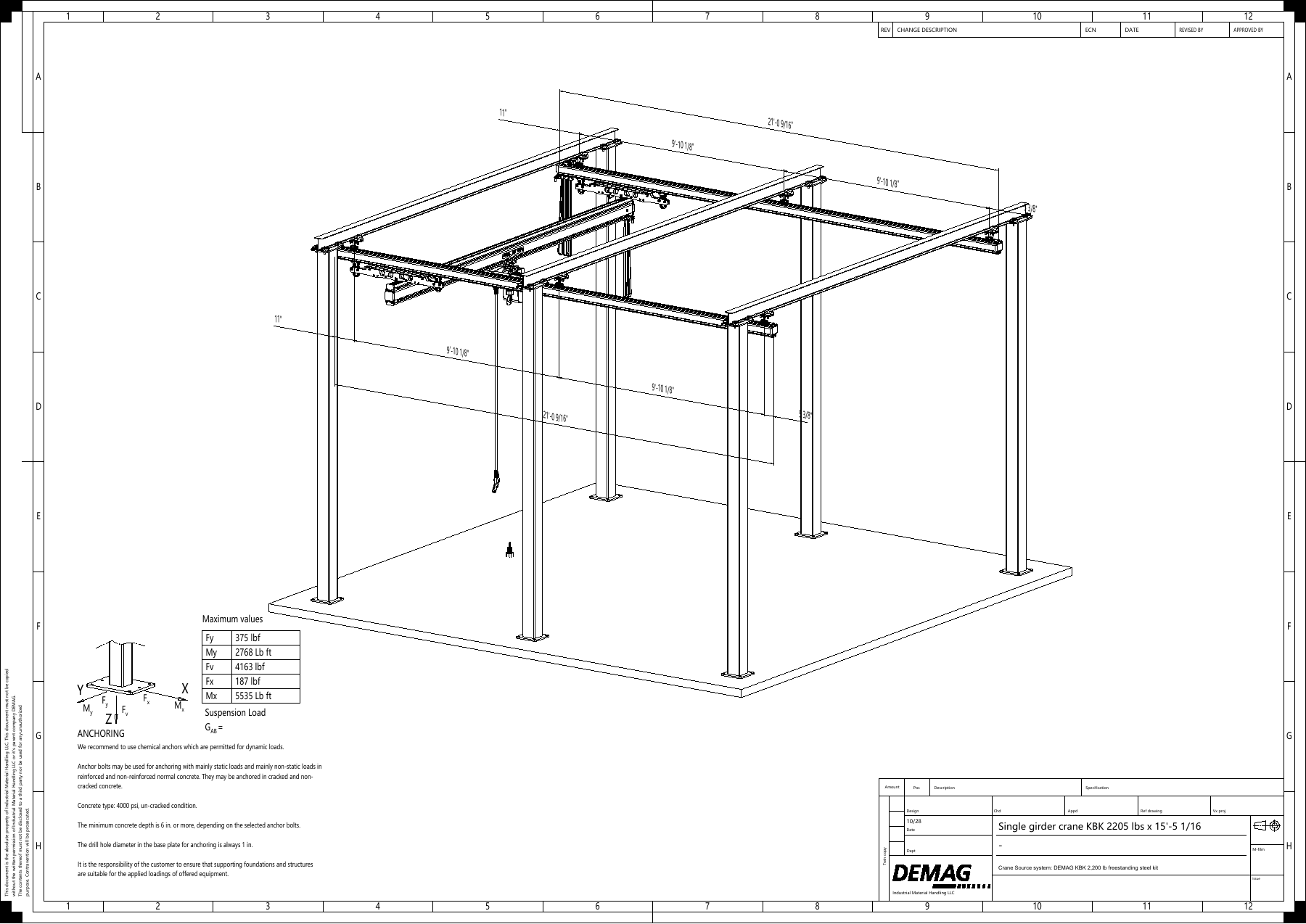

- 12′-0″ (OEM drawing)
- Overall system height
- 14′-10 1/2″ (OEM drawing)
- Bridge profile length (IHT)
- 16'-4 7/8" (OEM display) · 5,000 mm
- Runway length (I)
- 21′-0 9/16″ (OEM drawing) · 6,415 mm
- Support arrangement
- Freestanding portal
- Track material
- Steel
- Bridge travel
- Push travel
- Trolley travel
- Push travel
- Electrical supply
- 460 V / 3 phase / 60 Hz
- Controls
- DSC pendant, 24 V contactor control
- Crane bridges
- 1
- Hoist
- DC Com 10-1000 1/1 H5 V4.8/1.2 460/60
- Hoist lift
- 16 ft
Dimensions retain their DEMAG reference datums. Bridge length, span, hook height, and trolley-saddle height describe different measurements. IMH confirms usable travel and site clearances.
Package scope
Included in this reference
- Calculated runway and bridge assemblies with the components shown in the package BOM.
- Hoist power feed: Festoon. Runway power feed: Festoon. Supplied components are listed in the BOM.
- Included DC Com 10-1000 1/1 H5 V4.8/1.2 460/60 chain hoist with 16 ft lift.
- Standard height-adjustable DSC pendant and control cable within the included hoist assembly; 24 V contactor control.
- Calculated freestanding support arrangement. Supplied support steel is subject to IMH confirmation.
Separate or to be confirmed
- Freight and applicable taxes.
- Installation, commissioning and incoming building electrical connection.
- Building, slab and foundation engineering, civil works and site modifications.
This is an exact calculated reference package. Final site suitability, availability and order acceptance require IMH confirmation.
HFTS is floor-to-trolley-saddle height. Hook height and hook approaches require the selected hoist and installation clearances to be checked.
The selected stock hoist's lifting speeds, headroom and operating limits are confirmed in the final IMH quote.
OEM imperial displays are rounded. Millimetre profile lengths are preserved from the component BOM where explicitly identified.
IMH must confirm whether the package includes fabricated support steel or an engineering package before order acceptance.
Complete package scope is under review. No automatic complete-kit price is issued for this reference yet.
The source drawing states 2,205 lb; the package retains the conservative 2,200 lb selected in Designer.
The OEM technical-data span is 15′-5 1/16″ and the graphical span dimension is 15′-5″. Confirm the final order drawing and datum before installation.
The installed runway has two bays. A single track component length is not the overall runway length.
Anchor bolts are by others; foundation, slab, anchoring and support-steel supply require IMH confirmation.
Requested floor-to-trolley-saddle height: 12'. Actual drawing dimensions govern the reference arrangement.
Calculated runway layout: 2 bays at 9'-10 1/8" support centers.
Component schedule
| Part / assembly reference | Description / assembly | Qty | Unit |
|---|---|---|---|
| 85136544 | Cpl. susp. short: Upper suspension bracket A Runway BOM | 6 | PC |
| 98435544 | Internal buffer stop, II-L Runway BOM | 2 | PC |
| 85169044 | Cable slider for flat cable 4 x 1,5 mm² Runway BOM | 3 | PC |
| 87398944 | Cable union set Monorail / crane runway - for cable 4 x 1,5 mm² Runway BOM | 1 | PC |
| 98211444 | Rail end cable clamp Runway BOM | 1 | PC |
| 52291500 | 14AWG/ 4 C, yellow (Conductix, XA-21815Y) Runway BOM | 15 | M |
| 98412644 | End cap with buffer, II-L Runway BOM | 4 | PC |
| 20493646 | KBK II-L Steel profile (6415 mm) Runway BOM | 2 | PC |
| 85812044 | Internal buffer stop, II-L/II/II-H Bridge BOM (1) | 1 | PC |
| 85169044 | Cable slider for flat cable 4 x 1,5 mm² Bridge BOM (1) | 2 | PC |
| 85811444 | Rail end cable clamp, II-H Bridge BOM (1) | 1 | PC |
| 85868044 | Crane bridge cable clamp, II-H Bridge BOM (1) | 1 | PC |
| 55379579 | Capacity plate, AME large version, ''KBK", 2200 LB Bridge BOM (1) | 2 | PC |
| 85812644 | End cap with buffer, II-H Bridge BOM (1) | 2 | PC |
| 85820544 | Straight track section, II-H, l = 5000 mm Bridge BOM (1) | 1 | PC |
| 71640246 | Load bar for straight rails (type A), II-L, II, II-H, 18, 22, 28, eKa/eKt = 1200 mm, Kmax = 1400 kg Bridge BOM (1) | 2 | PC |
| 98211044 | Single trolley, II-L/II/II-H Bridge BOM (1) | 4 | PC |
| 85855544 | Crane suspension eye, II-H Bridge BOM (1) | 2 | PC |
| 85867044 | Single trolley II-H 1200kg Bridge BOM (1) | 1 | PC |
| 93135146 | DC Com 10-1000 1/1 H5 V4.8/1.2 460/60 Hoist assembly | 1 | PC |
| CFG-FSS-STEEL-2200-TALL | IMH configuration reference for the calculated DEMAG FSS G support arrangement; this reference is not a DEMAG spare-part SKU Configured supports | 1 | ASSEMBLY |
Your system reference
- IMH package
- fss-steel-2200-tall
- Calculated
- 2026-10-28
- Commercial status
- Request a complete-package quote from IMH
A calculated reference supports equipment selection. Building supports, foundations, anchorage, duty, installation, and final order scope require confirmation for the application.
